working of transistor

-

What is Bipolar junction transistor ?

Working of NPN Transistor

Forward bias is applied to emitter-base junction and reverse bias is applied to collector base junction.

Connection diagram of NPN transistor

The forward bias in the emitter-base junction causes electrons to move toward base. This constitute emitter current, IE .

As the electrons flow toward P-type base, they try to recombine with holes. As base is lightly doped only few electrons recombine with holes within the base.

These recombined electrons constitute small base current, IB.

The remainder electrons crosses base and constitute collector current.
                                                 IE =IB + IC


Working of PNP Transistor

Forward bias is applied to emitter-base junction and reverse bias is applied to collector-base junction.

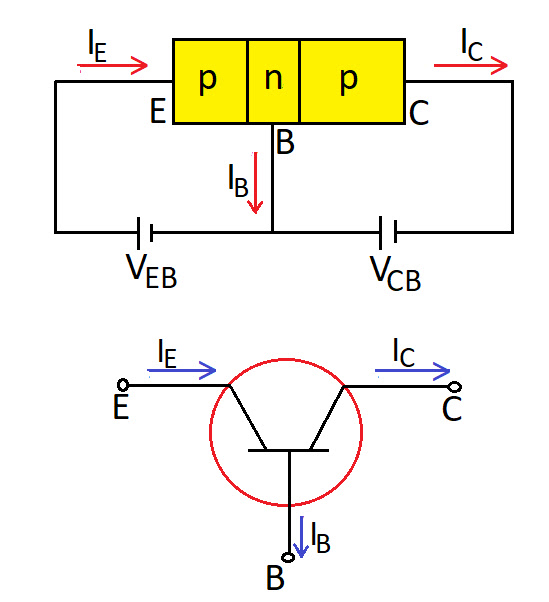

Connection diagram of PNP transistor

The forward bias in the emitter-base junction causes holes to move toward base. This constitute emitter current, IE .

As the holes flow toward n-type base, they try to recombine with electrons. As base is lightly doped only few holes recombine with electrons within the base.

These recombined holes constitute small base current, IB .

The remainder holes crosses base and constitute collector current.



Transistor Symbol

Symbol of NPN transistor





Symbol of PNP transistor





Transistor Operation Modes

  • Active Mode
Base-Emitter junction is forward and Base-Collector junction is reverse biased.

  • Saturation Mode
Base-Emitter junction is forward and Base-Collector junction is forward biased.

  • Cut-off Mode
Both junctions are reversed biased.



Transistor Connection

Transistor can be connected in a circuit in following three ways:-
  1. Common Base
  2. Common Emitter
  3. Common Collector
